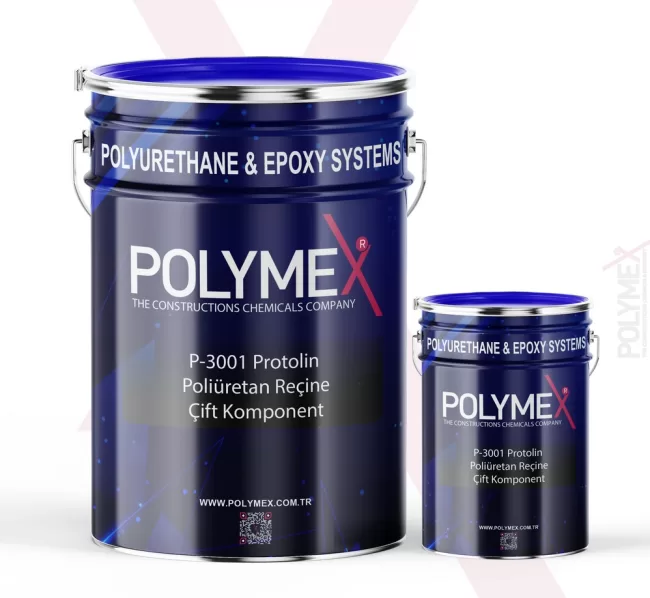

Polymex P-3001 Protoline Polyurethane Resin

It is a solvent-free, rigid or flexible polyurethane based two-component adhesive and insulation material.

Polymex-3001 is used in LV and MV cable joint insulation, integrated circuits, sealing fillings in coil windings. It is used without hesitation in the electricity sector and is used in underground and above ground cable installation connections and special transformer manufacturing. Polymex-3001 is used to insulate these joints when it is necessary to make joints in low and medium voltage cables. It is also used in different applications of electricity. It is resistant to 36 thousand volts of electricity. Protolin Polyurethane Resin

ColorCream or desired color
BrightnessGlossy or matte
Flash PointDoes not cause glare. Solvent free.
Start of Curing25 Minutes or desired duration
Application Temperature5-35 oC
Mixture Density ( 20 oC)1,3±0,1
Mixing RatioA/B:5/1
Binding SubstancePolyurethane Resin
Elongation at Break%48
Tensile Strength29 Mpa

The surface to be applied must be cleaned from old residues such as oil, dirt, dirt and dust and must be dry. Polymex-3003 is applied to the prepared surfaces by pouring or roller or machine application. Polymex-3001; If it is to be used manually, gloves must be used, it is a material that can be very difficult to remove when it gets on your hand. Polymex-3001; It is an excellent insulation and filling material for the electrical sector. Protolin Polyurethane Resin
Add Component B into Component A. Mix thoroughly with a mixer until there is no color difference and make ready for use. The mixture should be used within 15 minutes. Protolin Polyurethane Resin

Safety Precautions:
Skin contact should be avoided; in case of contact, wash with plenty of water and soap. Empty packages cannot be used as food storage containers. Direct inhalation should be avoided, masks, goggles and gloves suitable for chemical inhalation should be used. Protolin Polyurethane Resin

Notes
All technical data contained in this product data sheet are based on laboratory experiments. Actual data may vary due to conditions beyond the control of AŞY POLYMEKS KİMYA SAN TİC LTD ŞTİ. Protolin Polyurethane Resin

Description

It is used in underground and above ground cable attachment insulations in the Electricity Sector.
